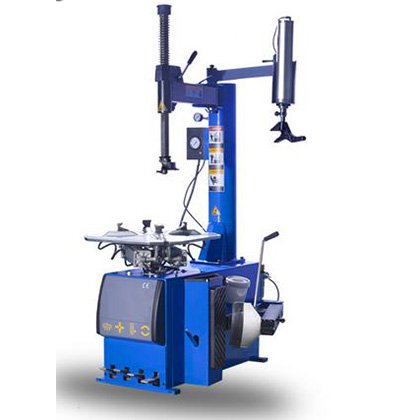

LT-910A

Tyre Changer

Technical data:

Round vertical column serves as quick inflation.
•With self-centering function.
•Clamping system with stepping function.
•Angle of mount/demount tool can be adjusted and calibrated.
•The high quality polymer mounts/demounts tool prevents the rim from damage.
•Mount/demount tool with plastic protector.
•Wheel lift(Optional).
•May dispose the fluctuation cylinder simple operating system(Optional).
•Clamps for motorcycle(Optional).
•Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation(Optional).

Inqulre Now

Technical data

TECHNICAL DATA

 Power supply/Motor power

 110V/220V/380V  0.75/1.1KW

 Max.Wheel diameter

 43″ (1100mm)

 Air supply

 6-10bar (0.6-1.0Mpa)

 Max.Wheel width

 15″ (381mm)

 Rim clamping range(External)

 12″-26″(305-660mm)

 Noise

 <70db

 Rim clamping range(Internal)

 14″-28″(355-711mm)

 N.W./G.W.

 550Lb/615Lb (250Kg/279kg)

 Bead breaker force

5500Lb (2500kg)
